Requesting a Public ADS-B Performance Report (PAPR)

The following instructional video provides visual instructions in requesting a Public ADS-B Performance Report (PAPR). In order to complete this process, watch this video or carefully read the instructions below:

Open a web browser.
Navigate to: https://adsbperformance.faa.gov/paprrequest.aspx
Read the instructions at the top of this page.

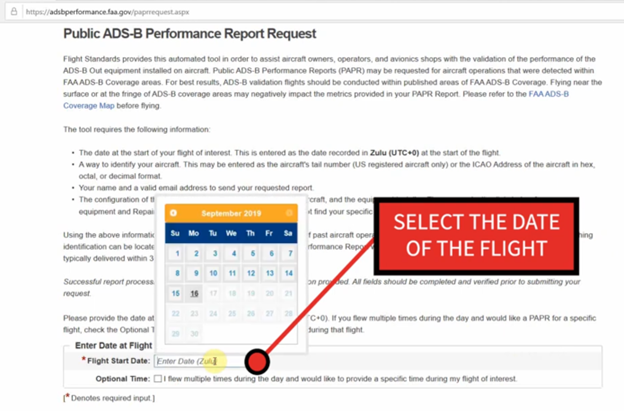

Where it says: “Enter Date at Flight, *Flight Start Date:” select the date of flight.

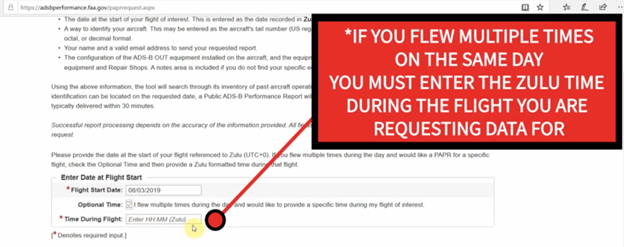

If you flew multiple times on the same day, you must enter the Zulu time during the flight you are requesting data for.

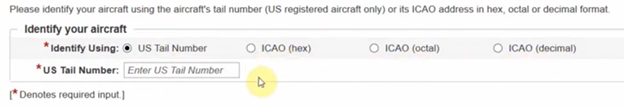

Under the section “Identify your aircraft”, enter your tail number or ICAO code.

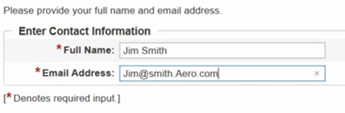

Under the section “Enter Contact Information,” enter your full name and email addresses.
Under the section “ADS-B OUT Data Link(s) and select “UAT” for ADS-B out data link selection.

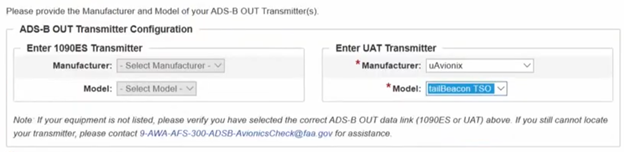

Under the section “ADS-B OUT Transmitter Configuration, select “uAvionix” from the “Manufacturer” drop-down menu, and then select your uAvionix product from the “Model” drop-down menu, that is right below.

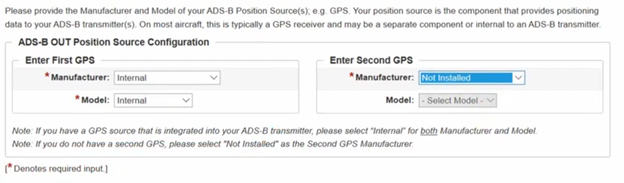

Under the section “ADS- OUT Position Source Configuration,” select “Internal” for both the “Manufacturer” and “Model” under First GPS” on the left-hand-side.
- Select “Not Installed” under “Manufacturer” under “Second GPS” on the right-hand-side.
Under the section “ADS-B Out Equipment Installer,” select the method of installation under the “Installer Category.”
Finally, at the bottom of the page, check the box next to the statement “I’m not a robot” and then select “Submit Request.”

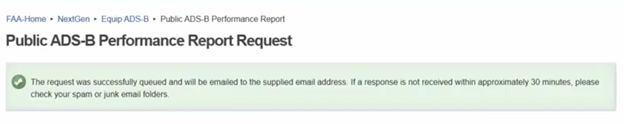

This will lead you to a page where it lets you know that your request was successful. You should receive an email in 10-15 minutes with the report attached. If a report fails to generate request the report again and check for any errors.
