tailBeaconX EXP GPS Test Without AV-30 or AV-20

Updated

Items needed:

Power supply 12V or 24V

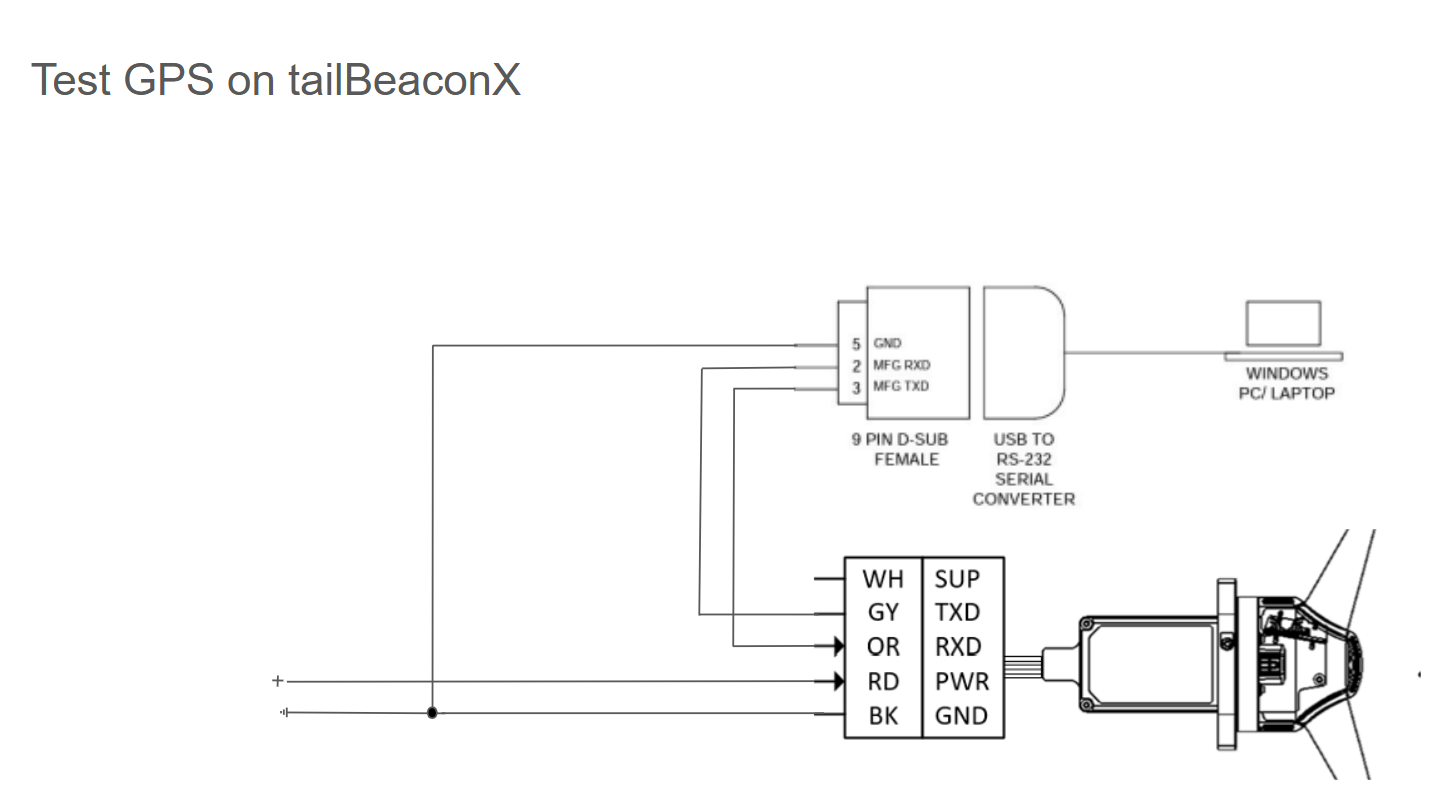

Connect:



Once connected:

  1. Select comm port
  2. Set baud rate to 2400
  3. Select ALT mode
  4. uncheck "On Ground"







 Pictures of set up

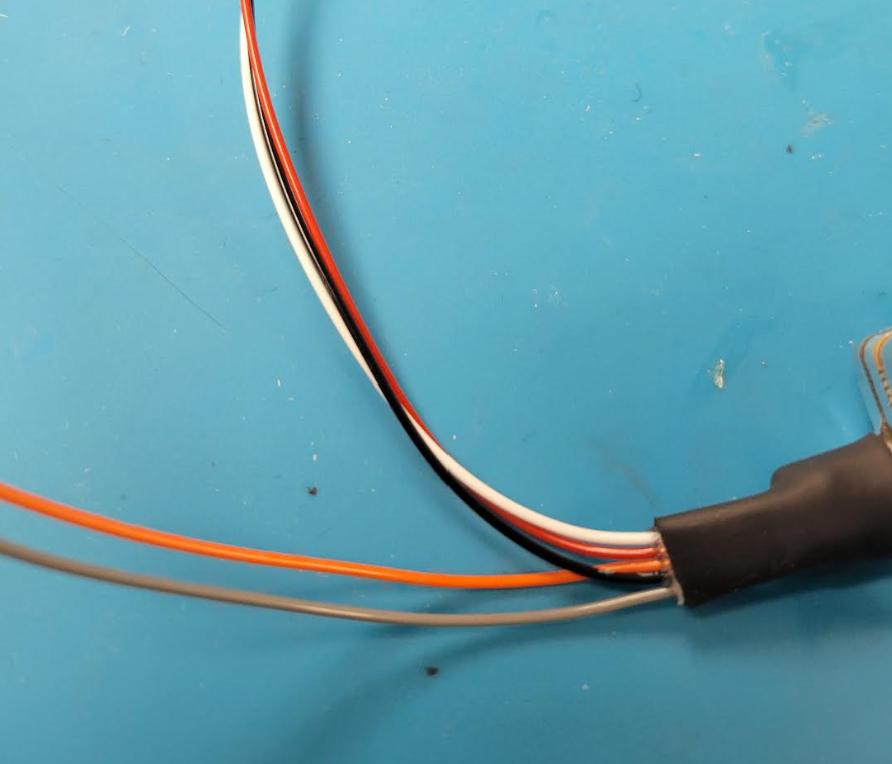

tbx wiring.png

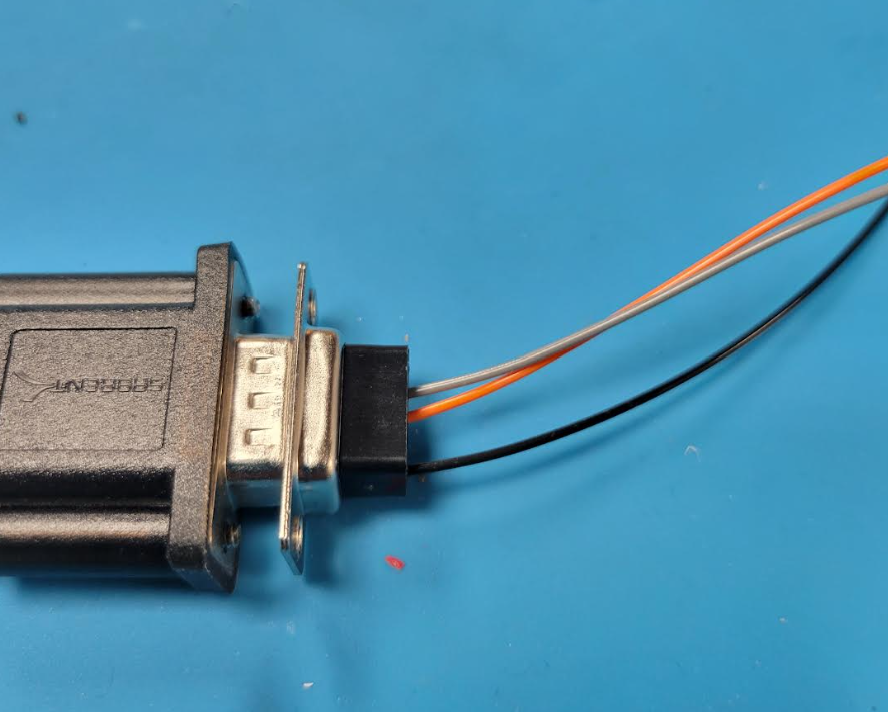

tbx wiring 2.png

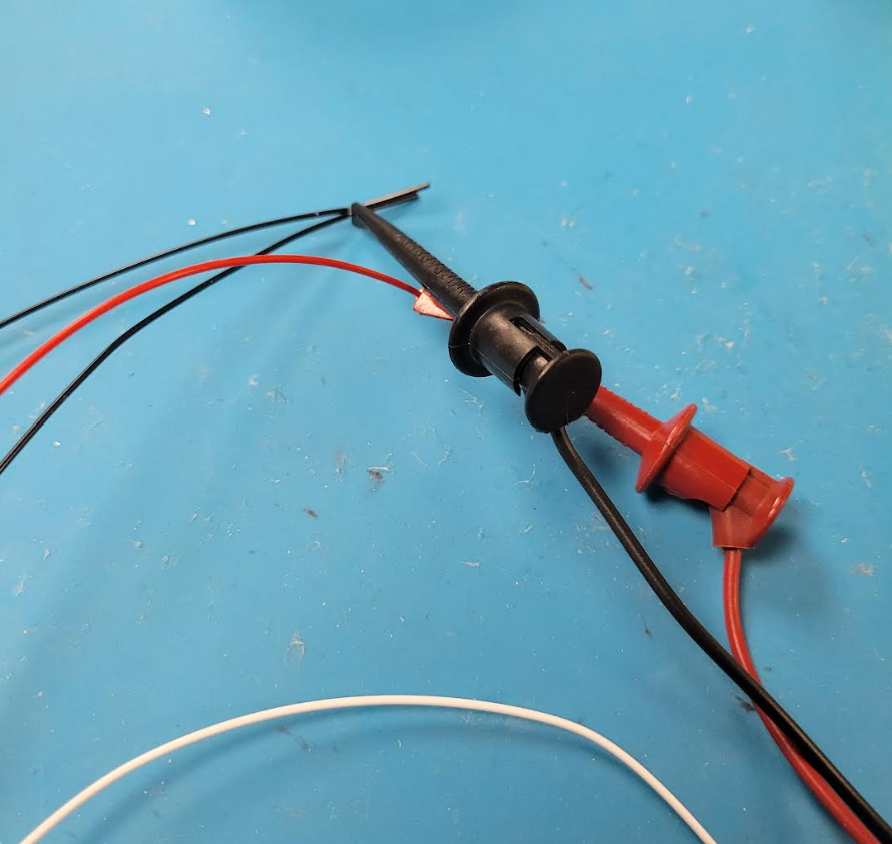

tbx wiring 3.png
