AV-Link Overview

AV-Mag

Overview

With an optional AV-Link accessory, the AV-30-C can be configured as a Multi-Function Display (MFD) that displays traffic from ADS-B receivers. MFD and DG modes are accessible when the AV-30-C is configured as a DG. As with other operating modes, the last page provides a reversionary AI.

AV-Link Functions

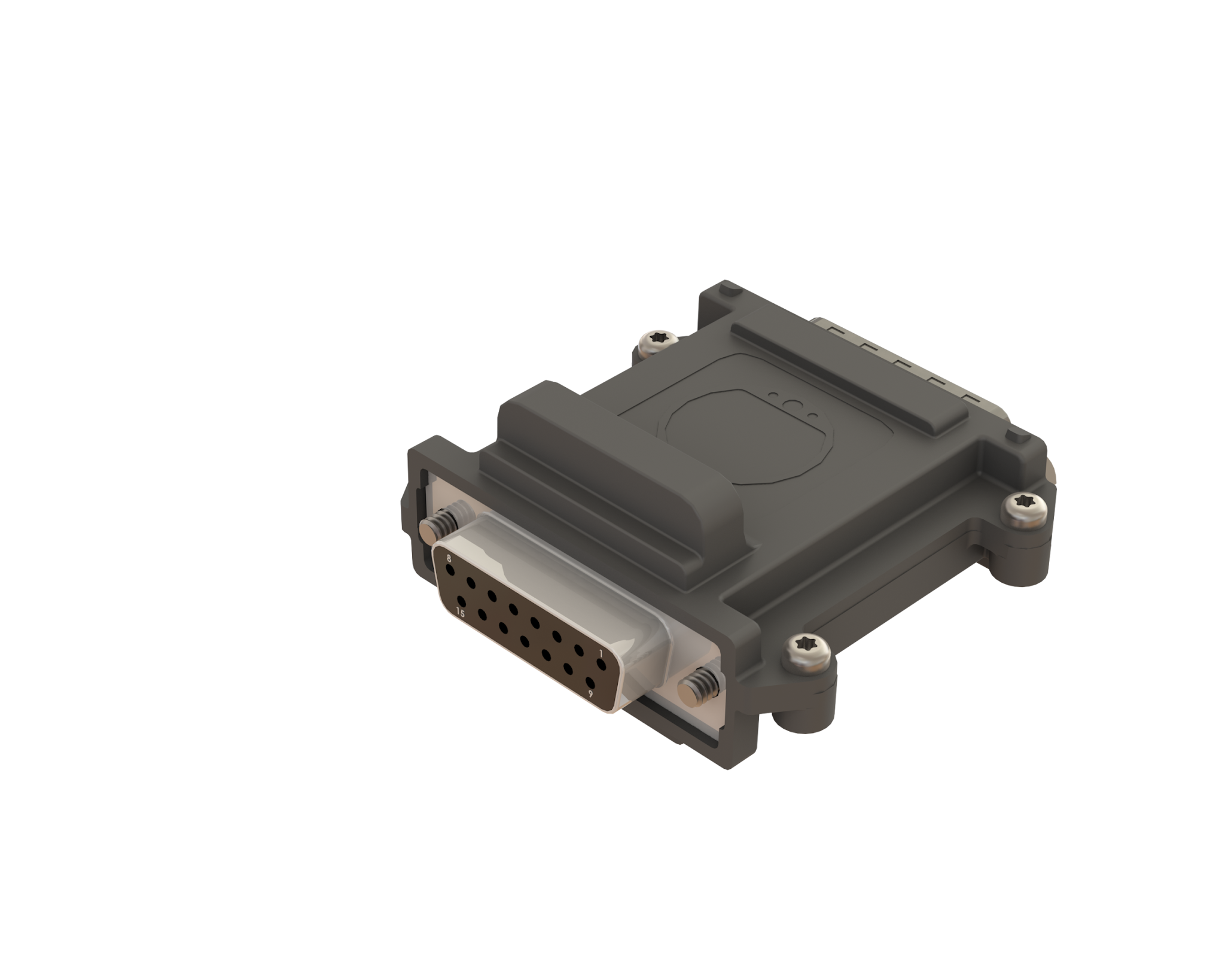

The AV-Link adds a wireless interface to the AV-30-C, which has three functions:

1. Displays ADS-B traffic from Wi-Fi capable ADS-B receivers (Sentry, Stratux, GDL90 WiFi)
2. Update the AV-30-C wirelessly. AV-Link connected directly to AV-HSI, sharing data with connected AV-30-Cs. Enables software updates of AV-HSI & connected AV-30-C from a single AV-Link.
3. If Sentry or Sentry Plus ADS-B receiver is connected to AV-Link, carbon monoxide data will be available as overlay & alert on AV-30-C.

**If multiple AV-Link modules are installed in the aircraft, no more than two may be enabled.

Unit locked as a dedicated Direction Indicator (DG Mode); can be toggled between DG and MFD by  the pilot.

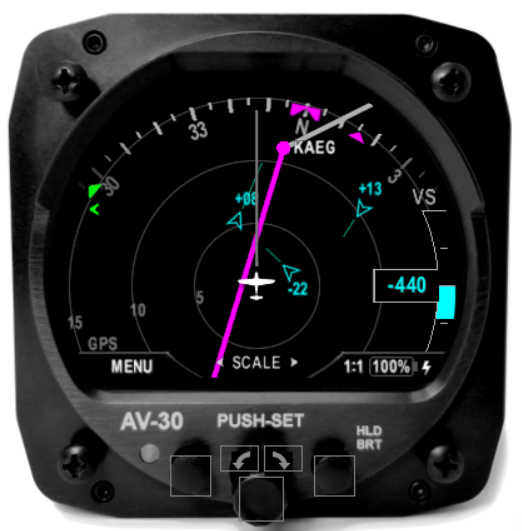

Other functions on the MFD display:

• Traffic Filter
• Vertical Speed Indicator
• Flight Plan
• Ownship ICAO (to filter out ownship)
• Track Bug
• GPS SRC Select

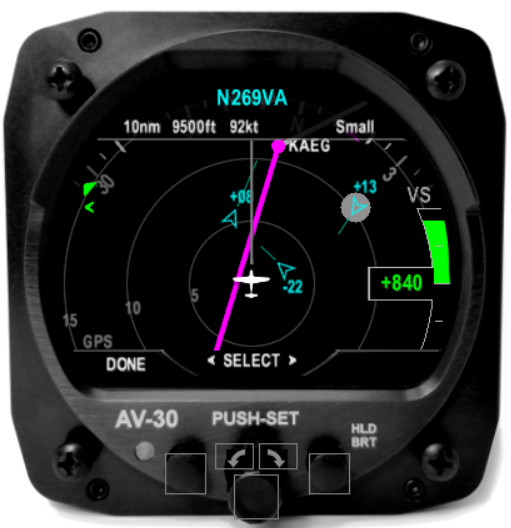

• Aircraft select (see N#, distance, speed, size)
