Utilizing Uploaded Data

In this video, you can follow visual and auditory instructions regarding how to upload data from your Casia G. Or you can follow along the instructions below.

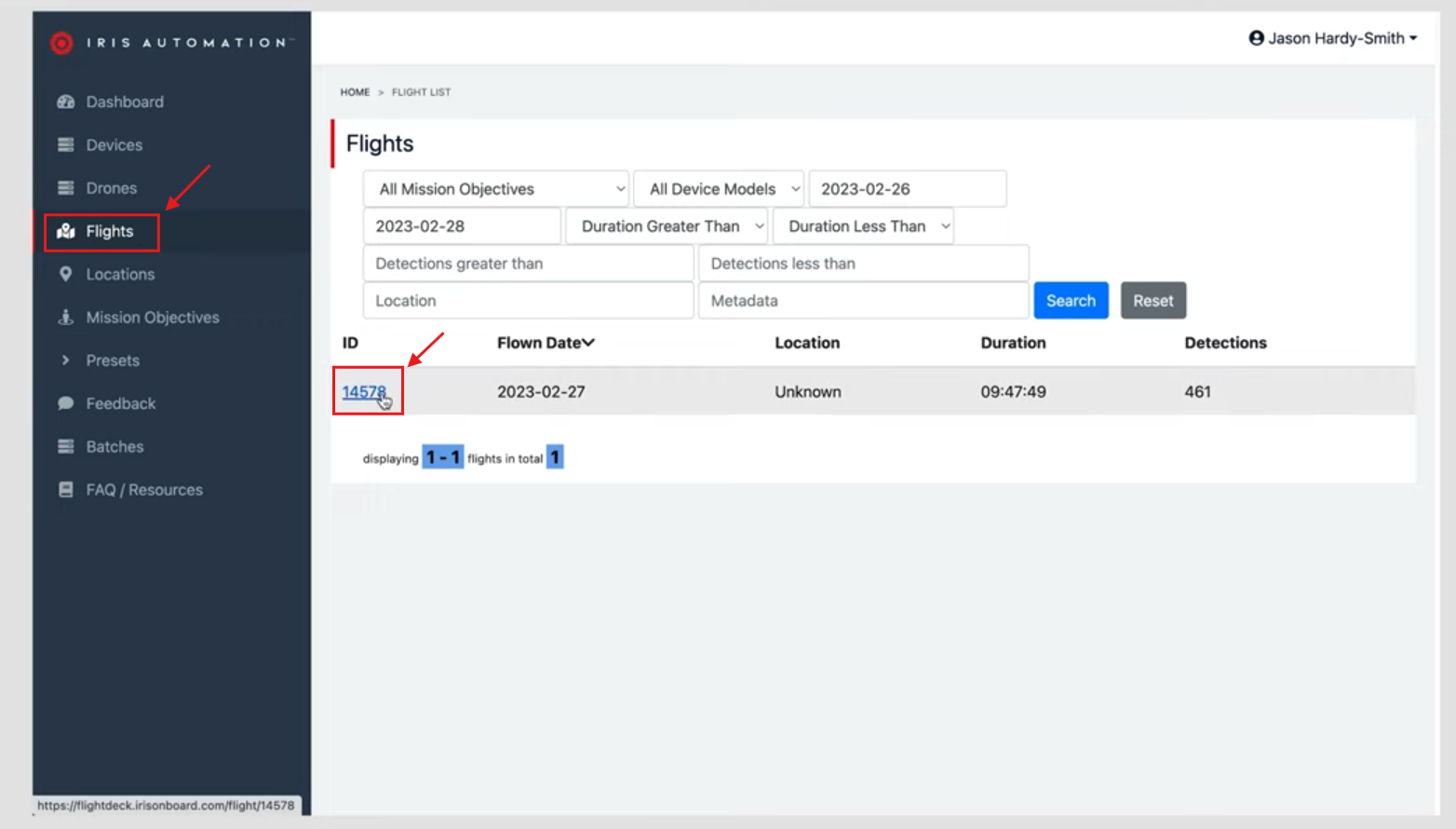

First off, after uploading data from your Casia G device, you can log into Flight Deck and find that particular data under the "Flights" sub-menu on the left-hand-side (under "Dashboard, Devices, Drones, you will see "Flights" listed). Inside the "Flights" menu, you will see your flights under "ID" listed. If you click on the ID link, this will open up a page with the videos recorded by your device.

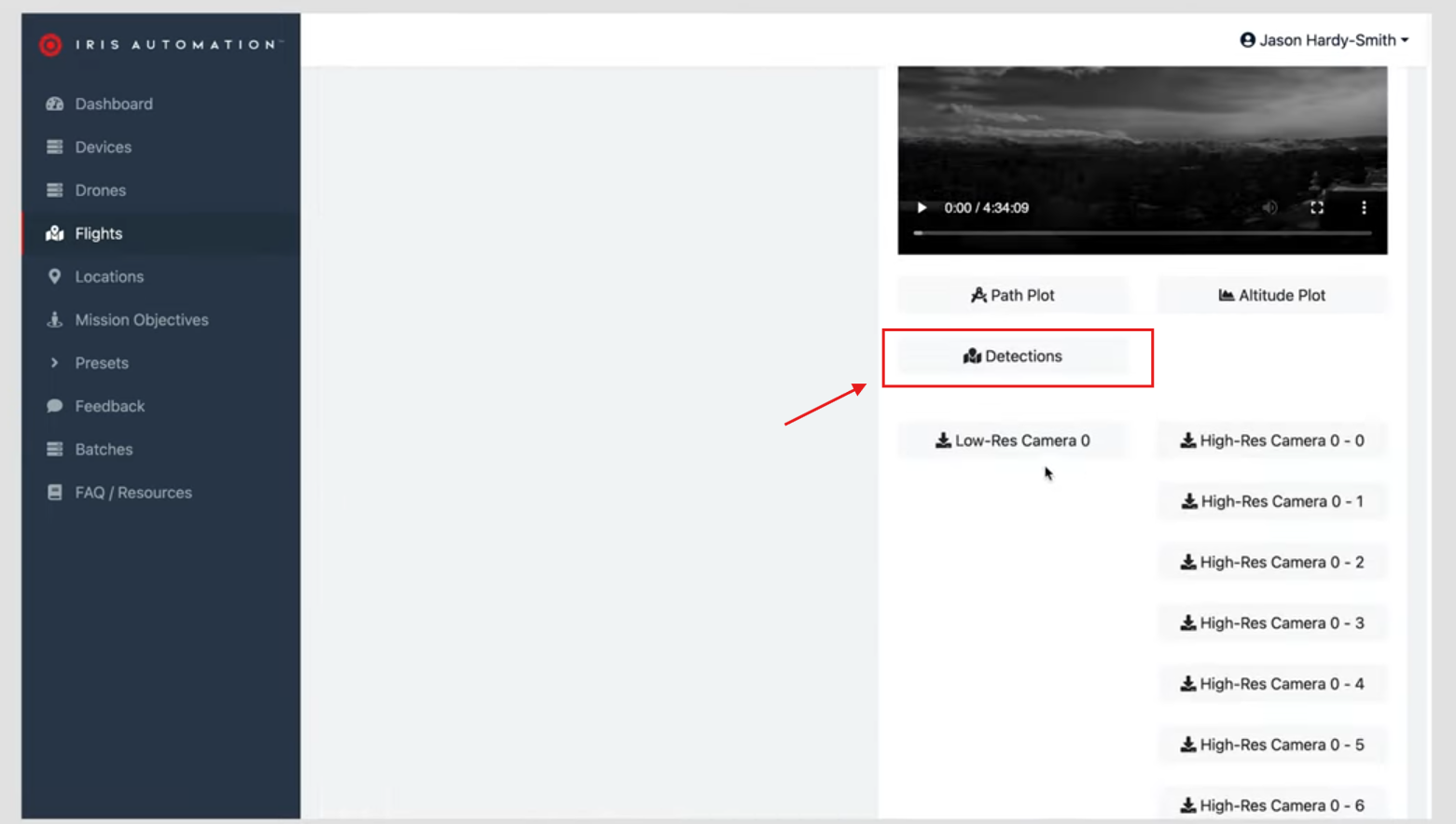

Next, scroll down the page to download video files or click on the "Detections" option to view individual detections.

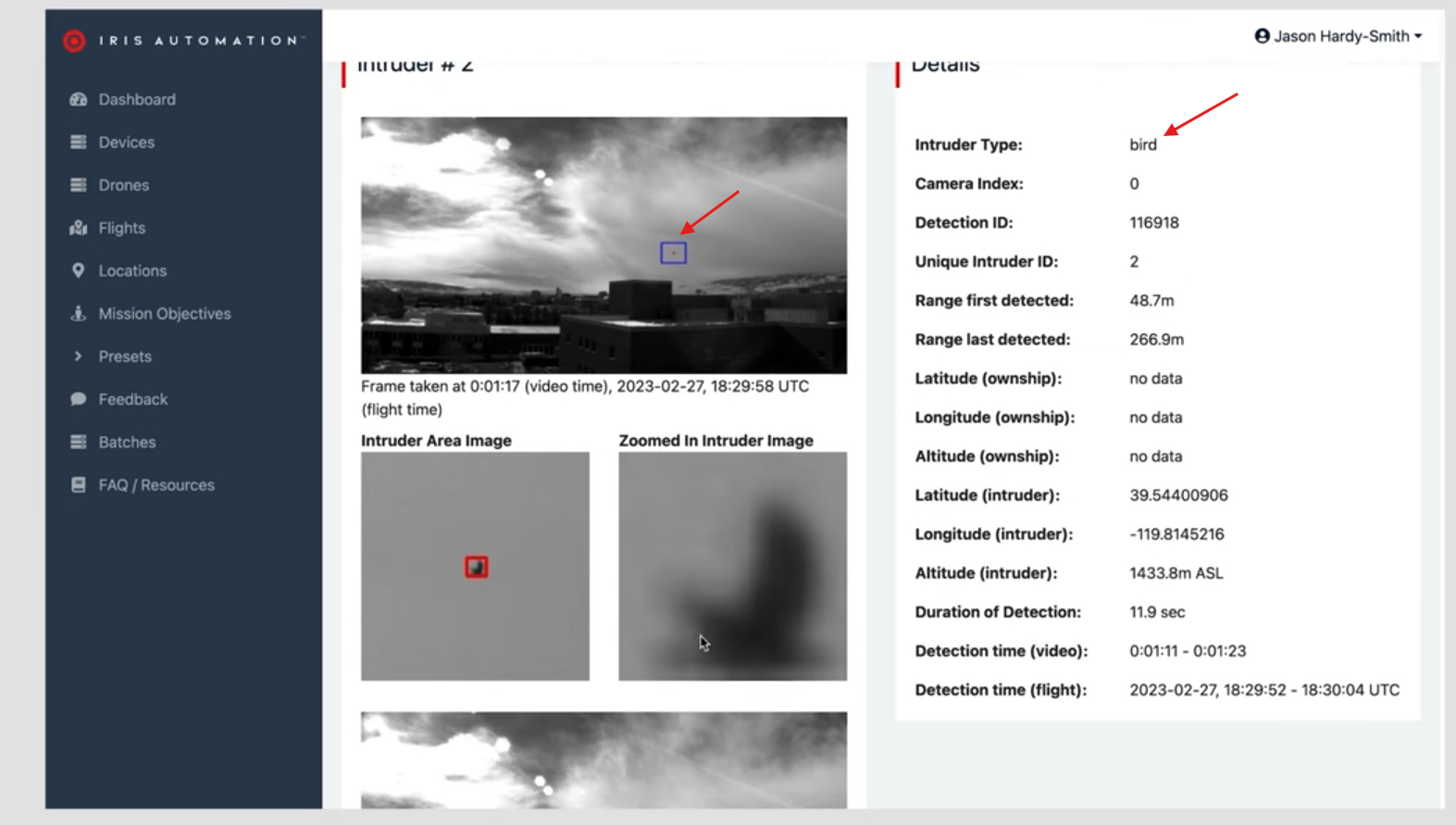

In this demonstration video, you will note that under "Detections," there was a bird that was detected. Information such as range is shown for each detection. False positives can also be found on this page. For example, in this video, there was a false positive of a crane in the distance. If you encounter a false positive, you can use the masking tool to mask it out.

Additionally, an airplane was detected in this detection video. You can examine this full frame and look at zoomed in images of the plane, as well as a video of the detection (as seen in this video).

Reverting back to the "Flights" sub-menu, you can also download log files. If you scroll all the way down the page, you will see a "Download Log Files" button to select. Log files include detection data in the "intruders.csv" file, which can help you analyze all ADS-B and electrooptical detections to understand Casia G's performance.
