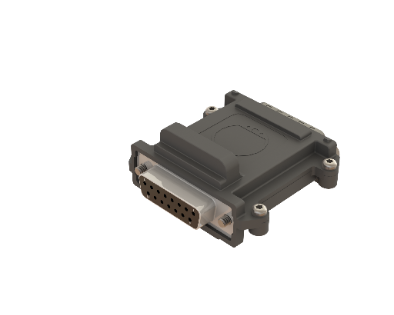

AV-Link Installation

Where Should the AV-Link Be Installed?

The correct AV-Link installation location depends on whether the aircraft has an AV-HSI installed. This is an important change from earlier AV-30 installations.

AV-30 Installation WITHOUT an AV-HSI

For a standalone AV-30 installation, the AV-Link connects directly to the back of the AV-30.

In this configuration, the AV-Link communicates only with the AV-30 to which it is connected. If the aircraft has multiple AV-30 displays without an AV-HSI, the AV-Link must be moved between displays—or a separate AV-Link must be used—to update each unit.

AV-30 Installation WITH an AV-HSI

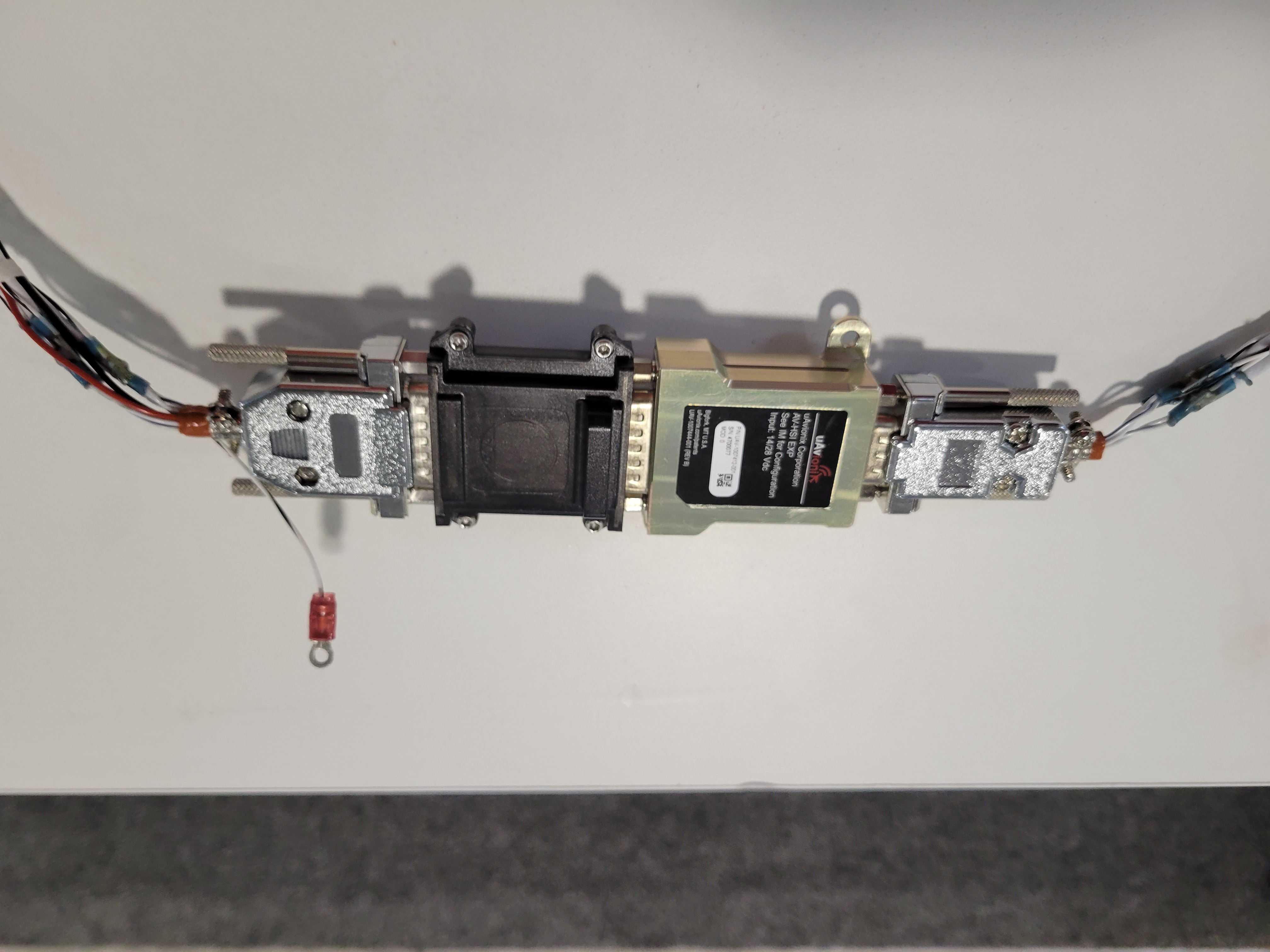

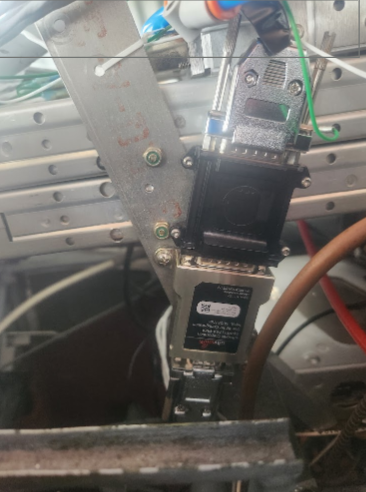

When an AV-HSI is installed, the AV-Link should not be connected directly to an AV-30. Instead, it connects to the AV-HSI and is remotely mounted behind the instrument panel.

The AV-HSI acts as the communication hub for the connected AV-30 displays. One AV-Link connected to the AV-HSI can support up to four AV-30 units, provided each AV-30 is running software version 3.0.1 or later.

Software updates are still performed one AV-30 at a time through the AV-Link web interface, but the AV-Link no longer needs to be physically moved between displays.

Why Did the Location Change?

Before the introduction of the AV-HSI, the AV-Link communicated directly with a single AV-30. The AV-HSI creates a shared connection between multiple AV-30 displays, allowing one centrally installed AV-Link to communicate with each connected unit.

The simplest rule to remember is:

No AV-HSI: connect the AV-Link to the AV-30.
AV-HSI installed: connect the AV-Link to the AV-HSI.

Always follow the current AV-30 and AV-HSI installation manuals for wiring, configuration, mounting, and software requirements. Additional guidance is available in the official AV-Link PMA FAQs and AV-HSI PMA FAQs.
