Overview of the equipment installation of the AV-30.
Installation consists of the following steps:
- Remove / relocate any legacy instrumentation
- Add or locate an appropriate power source / breaker
- Mount on-board accessories in their appropriate locations (AV-HSI, AV-HSI + AV-Link, AV-APA)
- Wire power, accessory interfaces and third party interfaces as needed
- Mount the unit to the instrument panel with supplied screws
- Connect pitot and static to both AI and DG. Perform leak check after installation
- Apply power and perform setup
- Install optional AV-Mag and perform setup and calibration

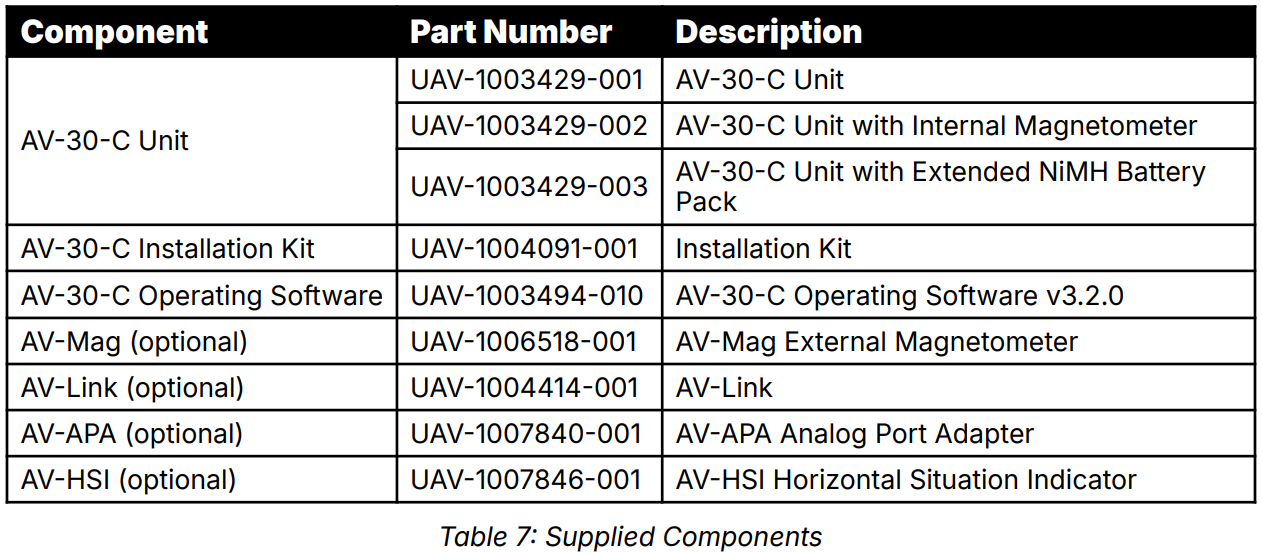

Supplied Components:
The AV-30-C Installation Kit includes the following:
- 6-32 mounting screws (various lengths)
- 15-pin harness housing and associated pins
- Braided Ground Cable
- Ring Terminals
- Thumb Screws
- Screw Depth gauge

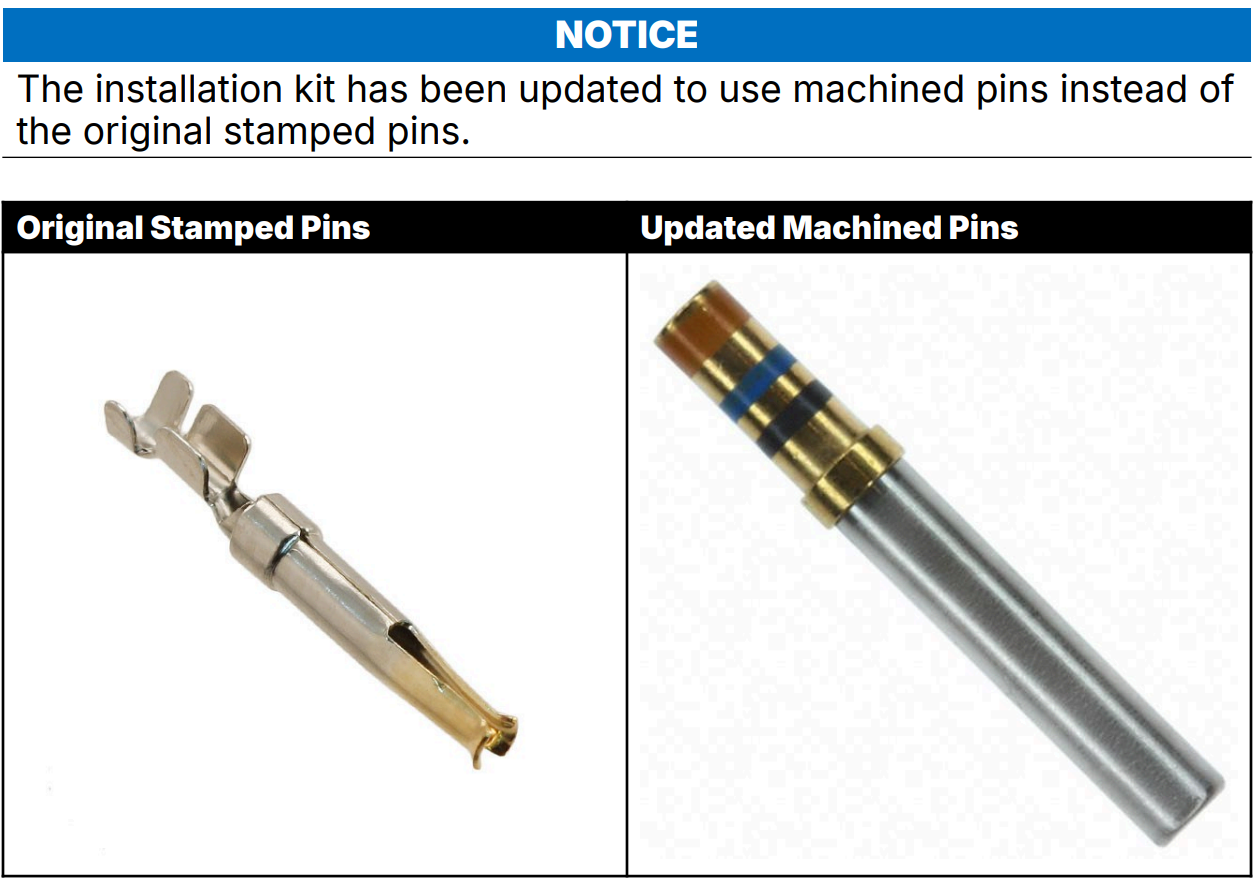

Machined Pin p/n: 205090-1
15 Pin Female Crimp Style Connector: 205205-7
If your kit includes machined pins, a Daniels AFM8 crimp tool using a K13-1 positioner or equivalent M22520/2-01 tool should be used. If your installation kit includes the original stamped pins, a NorComp 180-701-170-000 hand crimper or equivalent should be used. FAA AC 43.13-1B provides general guidance on wire crimping. For detailed instructions, refer to the operating instructions provided by the crimp tool manufacturer.

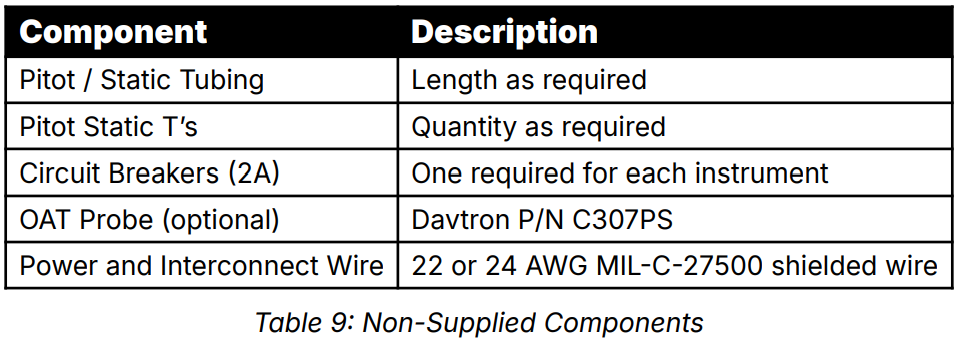

Non-Supplied Components:
